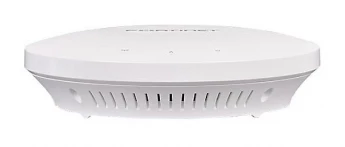

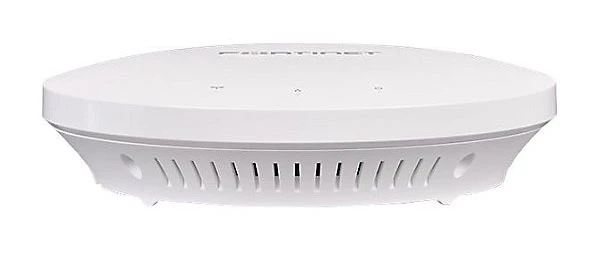

Fortinet FortiAP-221E Indoor Access Point
Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 1 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 or AC adapter SP-FAP200-PA. Region Code A
Təsvir Fortinet FortiAP-221E Indoor Access Point
Reviews
| Indoor/Outdoor Deployment | Indoor AP | Indoor AP |
| Number of Radios | 2 | 2 |
| Number of Antennas | 4 Internal | 4 External |
| Peak Antenna Gain | Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz | Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
| Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
| Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
| Bluetooth Low Energy (BT/BLE) Radio | — | — |
| Interfaces | 1x 10/100/1000 Base-T RJ45, 1x Type A USB | 1x 10/100/1000 Base-T RJ45, 1x Type A USB |
| Power over Ethernet (PoE) | IEEE 802.3af | IEEE 802.3af |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist | |
| Maximum Tx Power | 2.4 GHz: 23 dBm / 200 mW (2 chains combined)** 5 GHz: 24 dBm / 251 mW (2 chains combined)** |
|
| Kensington Lock | Yes | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3az | |
| SSID Types Supported | Local-Bridge, Tunnel, Mesh | Local-Bridge, Tunnel, Mesh |
| Per Radio Client Capacity | Up to 512 | Up to 512 |
| Cellular Co-existence | Yes | Yes |
| LED Off Mode | Yes | Yes |
| Advanced 802.11 Features | ||
| 802.11ac Wave 2 MU-MIMO | Yes | Yes |
| Transmit Beam Forming (TxBF) | Yes | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes | Yes |
| Maximum Ratio Combining (MRC) | Yes | Yes |
| 802.11ac 20/40/80 MHz Channel | Yes | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes | Yes |
| MIMO Power Save | Yes | Yes |
| Short Guard Interval | Yes | Yes |
| Wireless Monitoring Capabilities | ||
| Rogue Scan Radio Modes | Background, Full-time | Background, Full-time |
| WIPS / WIDS Radio Modes | Background, Full-time | Background, Full-time |
| Packet Sniffer Mode | Yes | Yes |
| Spectrum Analyzer | Yes | Yes |
| Dimensions | ||
| Length x Width x Height | 6.3 x 6.3 x 1.85 inches (160 x 160 x 47 mm) | 6.3 x 6.3 x 1.85 inches (160 x 160 x 47 mm) |
| Weight | 1.1 lbs (0.5 kg) | 1.1 lbs (0.5 kg) |
| Package (shipping) Weight | 4.95 lbs (2.2 kg) | 5.3 lbs (2.4 kg) |
| Mounting Options | Ceiling, T-Rail and Wall | Ceiling, T-Rail and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall | Mount kits for Ceiling, T-Rail, and Wall, 4 dipole antennas |
| Environment | ||
| Power Supply | Adapter Input: 100–240V, 50/60Hz, 0.4A Output: 12V DC, 2A | Adapter Input: 100–240V, 50/60Hz, 0.4A Output: 12V DC, 2A |
| Power Consumption (Max.) | 7.8 W | 10.5 W |
| Humidity | 5% to 90% non-condensing | 5% to 90% non-condensing |
| Operating Temperature | -4 to 122˚F (-20 to 50˚C) | -4 to 122˚F (-20 to 50˚C) |
| Storage Temperature | -40 to 158˚F (-40 to 70˚C) | -40 to 158˚F (-40 to 70˚C) |
| Directives | Low Voltage Directive • RoHS2 | Low Voltage Directive • RoHS2 |
| UL2043 Plenum Material | Yes | Yes |
| Mean Time Between Failures | >30 Years | >30 Years |
| IP Rating | — | — |
| Surge Protection Built In | — | — |
| Hit-less PoE Failover | No | No |
| Certifications | ||
| WiFi Alliance Certified | Yes | Yes |
| DFS | FCC, IC, CE, Japan, Taiwan | FCC, IC, CE, Japan, Taiwan |
