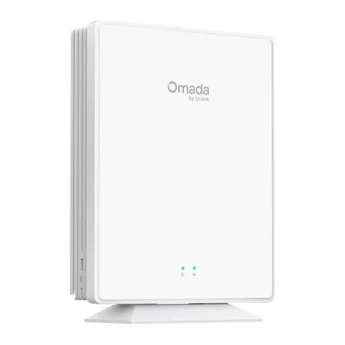

Omada EAP603GP-Desktop AX1800 Wi-Fi 6 Desktop GPON Access Point

Stokda: Bitib

Dükanda: Bitib

Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz† Multiple Ports for More Devices: 1× GPON port for high-speed, long-range access and 4× Gigabit RJ45 ports provide high-speed connections to more devices One Fiber for Multiple Services: Wired, wireless, voice, data, and HD video services Easy Use: One-click pairing and automatic adoption High Flexibility: Supports both desktop and wall mounting setups Advanced Features: Unified management for Omada devices and OLT^, PPSK△, multiple portals, Omada mesh, and seamless roaming§

2 ay

3 ay

6 ay

9 ay

12 ay

18 ay

Təsvir

HARDWARE FEATURES
Interface	• 1x GPON Port • 1x FXS Port • 4x Gigabit Ethernet Ports
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Button	• Reset • LED
Power Supply	12V/1.5A DC
Max. Power Consumption	15.5 W
Weight	437g
Dimensions ( W x D x H )	6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 4.5 dBi
Mounting	Desktop / Wall mouting (Kits included)

WIRELESS FEATURES
Coverage	140㎡(1500ft²)^**
Concurrent Clients	120+^*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: 1201 Mbps^† • 2.4 GHz: 574 Mbps
Wireless Functions	• 2×2 (2.4G & 5G) MU-MIMO^‡ • HE80 (80 MHz Bandwidth)^‡ • OFDMA^‡ • Seamless Roaming ^§ • Mesh^§ • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <27 dBm(5 GHz, band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes. Require the use of Omada Cloud-Based Controller.
