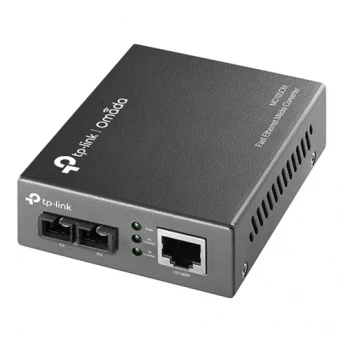

Omada MC100CM 10/100Mbps Multi-Mode Media Converter
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
- Extends fiber distance up to 2km
Təsvir Omada MC100CM 10/100Mbps Multi-Mode Media Converter
Reviews
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Interface | 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Multi-mode Fiber |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max. Power Consumption | 2.5W |
| LED | PWR, FDX/Col, Link/Act, SPD |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • Media Converter MC100CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
