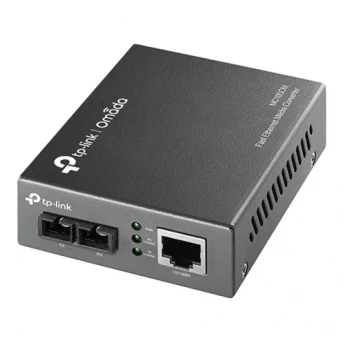

Omada MC110CS 10/100Mbps Single-Mode Media Converter
Omada MC110CS 10/100Mbps Single-Mode Media Converter
65 ₼
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
- Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
- Extends fiber distance up to 20km
Təsvir Omada MC110CS 10/100Mbps Single-Mode Media Converter
Reviews
Tip
Media Konverter
Brand
TP-Link
Rəng
Qara
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Interface | 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max. Power Consumption | 1.52W |
| LED | PWR, FDX/Col, Link/Act, SPD |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • Media Converter MC110CS • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
