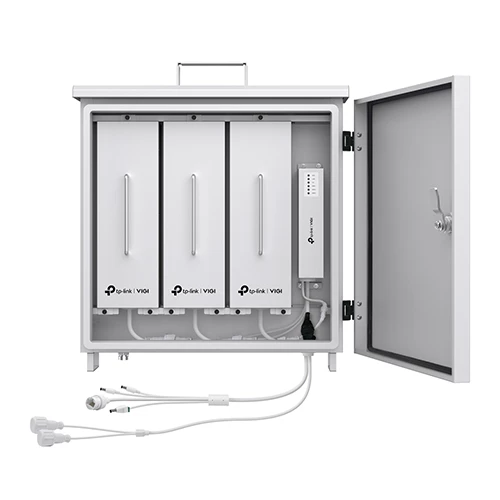

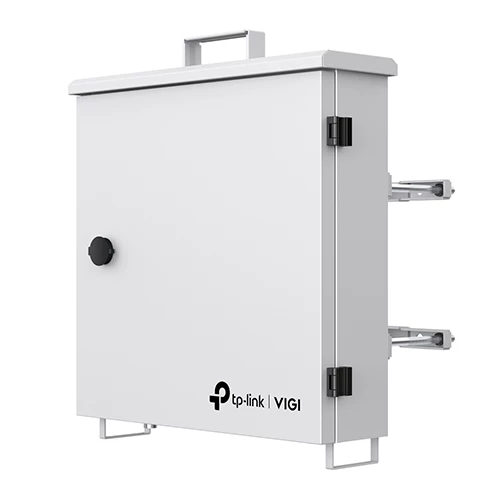

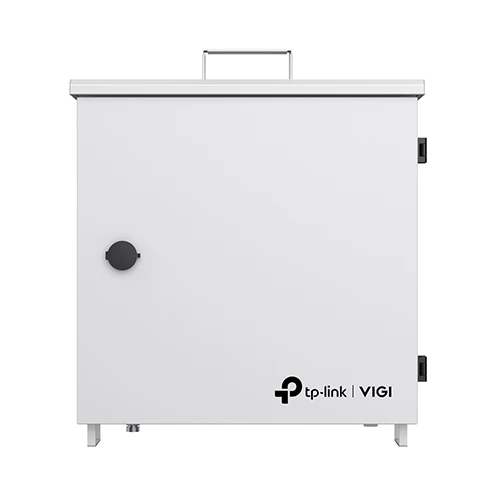

Vigi PS90 Solar System Controller
Vigi PS90 Solar System Controller
2 815 ₼
- 93.6Ah/10.95V Automotive-Grade Lithium Battery (31.2Ah Per Lithium Battery)
- Remote Management and Maintenance via the VIG app or VIGI Cloud VMS
- Indendent Protection Circuit Ensures Battery Safety and Uninterrupted Device Operation
- Intelligent Auxiliary Heating Technology Ensures Optimal Battery Performance in Extreme Cold Weather
- Maximum Power Point Tracking (MPPT) Charging Controller Increases Charging Efficiency by 20%*
- Remaining Capacity > 70%** after 500 Cycles
- IP66 Weatherproof
Təsvir Vigi PS90 Solar System Controller
Reviews
Tip
Kontroller
Brand
TP-Link
Rəng
Ağ
Təyinat
Məkan xarici nəzarət üçün
| Type | Lithium |
|---|---|
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah(Max),31.2Ah(Per Lithium Battery) |
| Voltage | 10.95 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles△ |
| Dimension | • 9.4×2.9×2.8 in (240×74×72 mm) (Per Lithium Battery) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
| HARDWARE | |
|---|---|
| Interface | • 1× Three-pin Female Connector For Connecting The Controller • 1× Three-pin Male Connector For Connecting The Modular Battery • 2× Four-pin Female Connectors For Connecting The Solar Panel • 1× 10/100 Mbps RJ45 • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator) • Color: Blue |
| Product Dimensions (W x D x H) | • 18.9×6.4×16.8 in (481×163×426 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Three-way Load |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CE, FCC, RoHS, IP66 Weatherproof |
| Package Content | • VIGI Solar System Controller • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Box Dimensions (W X D X H) | 22.83×20.47×9.8 in (580×520×250 mm) |
| Weight | Gross Weight: 24 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
