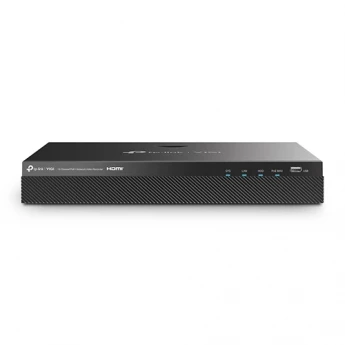

Vigi NVR2016H 16 Channel Network Video Recorder
Vigi NVR2016H 16 Channel Network Video Recorder
225 ₼
- 16-Channel Live View and 4K HDMI Video Output
- Up to 10-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 160 Mbps Incoming and Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- Alarm In/Out: 6/4
- HDMI and VGA Independent / Simultaneous Output
- Remote Monitoring
Təsvir Vigi NVR2016H 16 Channel Network Video Recorder
Reviews
Tip
NVR
Brand
TP-Link
Rəng
Qara
Təyinat
Məkan daxili nəzarət üçün
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps: 10-ch @ 3MP, 16-ch @ 1080P • 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
| Record Management | |
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S, CGI |

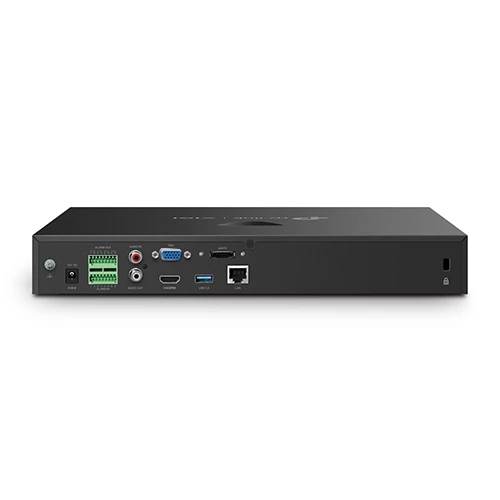

| External Interface | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1* |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| PoE | |
| Standard | 802.3at/af Compliant |
| Interface | 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 140△ W Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
| GENERAL | |
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder • Power Adapter • Terminal Blocks • HDD Power Cables • HDD Data Cables • Mounting Brackets • Screws • Rubber Feet • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm) |
| Net Weight | 2.2 Kg# |
| Gross Weight | 4.2 Kg# |
| Power Supply | 53.5V DC/3.37A |
| Max. Power Consumption | • 6.2 W (Without Disk) • 40 W (With Disk) |
| Certifications | CE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF |
